Where steel wears through, alumina takes the wear.
Alumina tiles, ceramic-lined pipes and elbows, rubber-ceramic panels, mill linings and grinding media from partner factories in Zibo — matched to your operating conditions and inspected before they leave China.
We start from the duty, not from a catalogue.
Most wear-lining failures are a mismatch between lining and conditions: the wrong fixing for the temperature, bare tiles where lumps need rubber backing, a grade chosen on price alone. So the first thing we ask is how your equipment runs.
You send the duty
Material, temperature and how fast it changes, particle or lump size, velocity, impact, chemistry — and a drawing or photo with dimensions.
We propose a design
Alumina grade, form and thickness, and the fixing method — bonded, welded or vulcanised — with the conditions where it stops working. In writing, before the price.
A partner factory makes it, we check it
The factory whose product and price fit the order produces it. We check dimensions, defects and density before packing, and send photos of the goods and the loading.

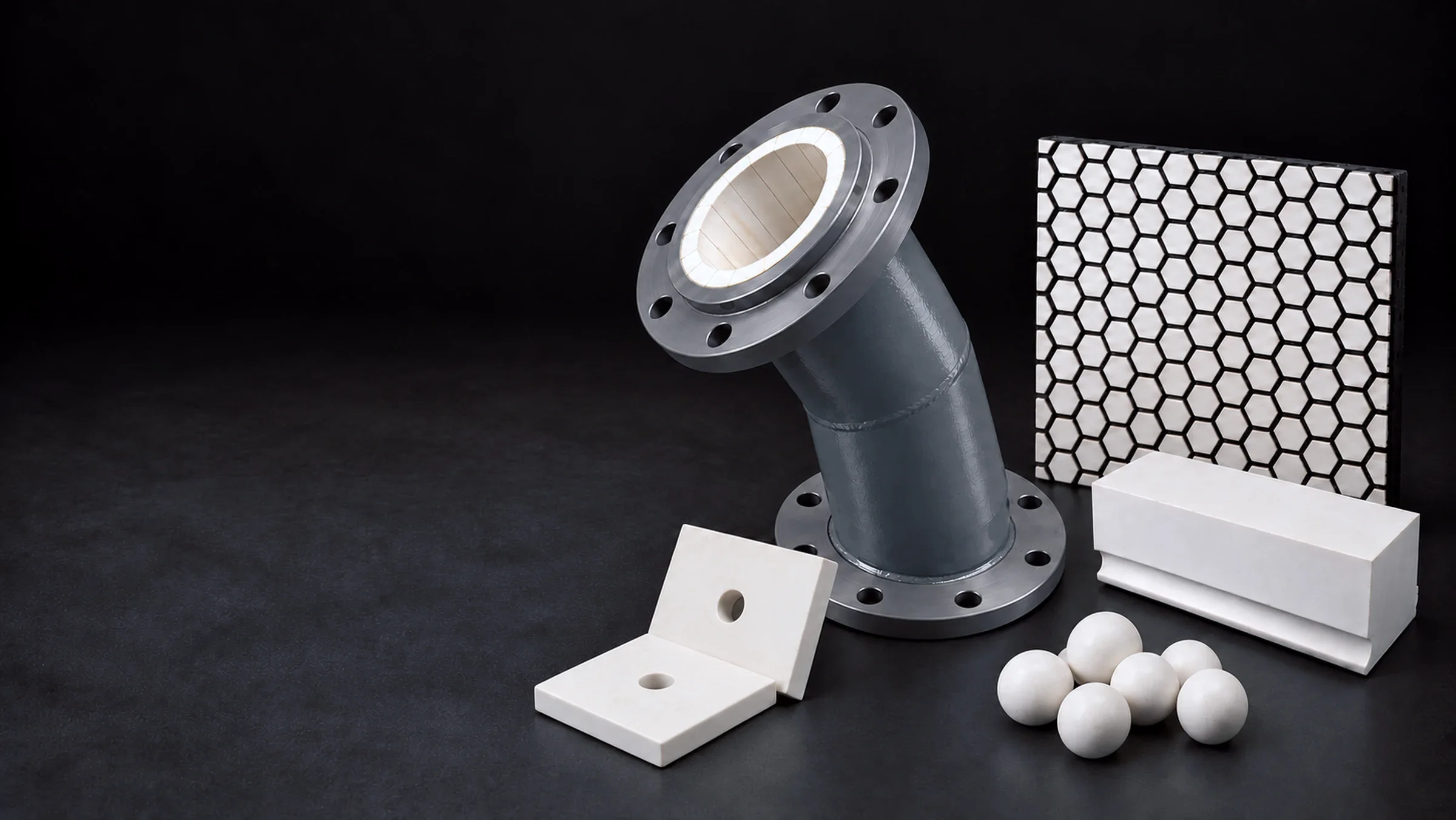

Six product families, one way of choosing.
All are dense high-alumina ceramics, 92 % or 95 % Al₂O₃. What changes is the form, how it is fixed and the duty it is meant for. Photos are from a partner factory in Zibo; hover a product to see its section.

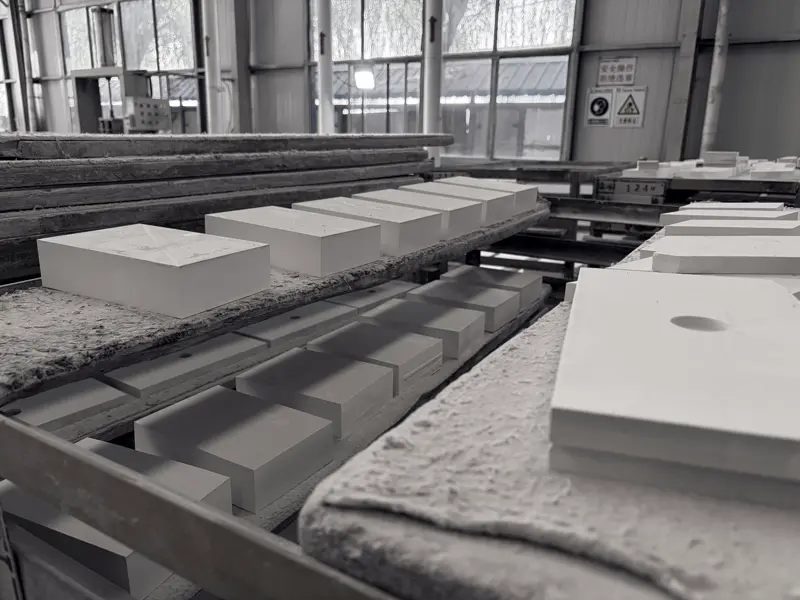

Section viewAlumina wear tiles & liners
Plain and weld-on tiles, mosaic and hexagonal mats, cylinders and custom shapes for chutes, hoppers and pipes.
View product

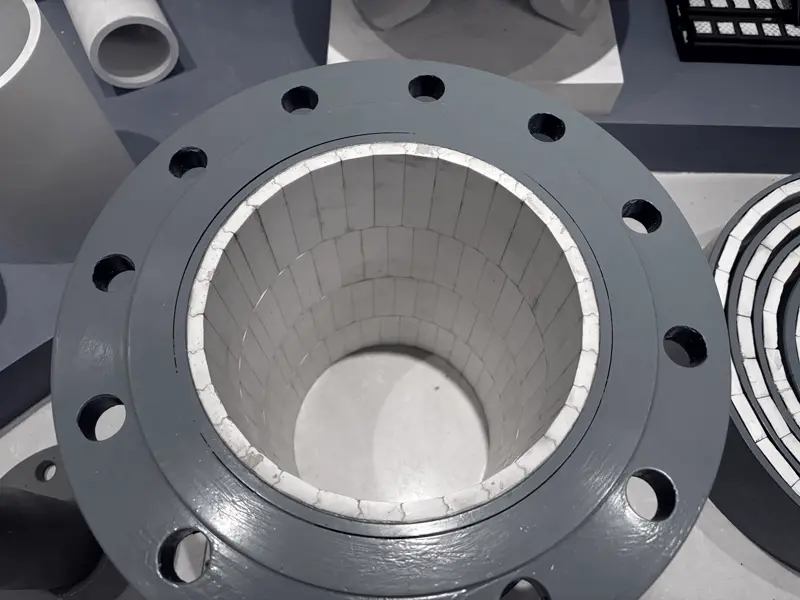

Section viewCeramic-lined pipes & elbows
Tile-lined steel spools, elbows, reducers and tees, flanged to your standard, for slurry, ash and powder lines.
View product

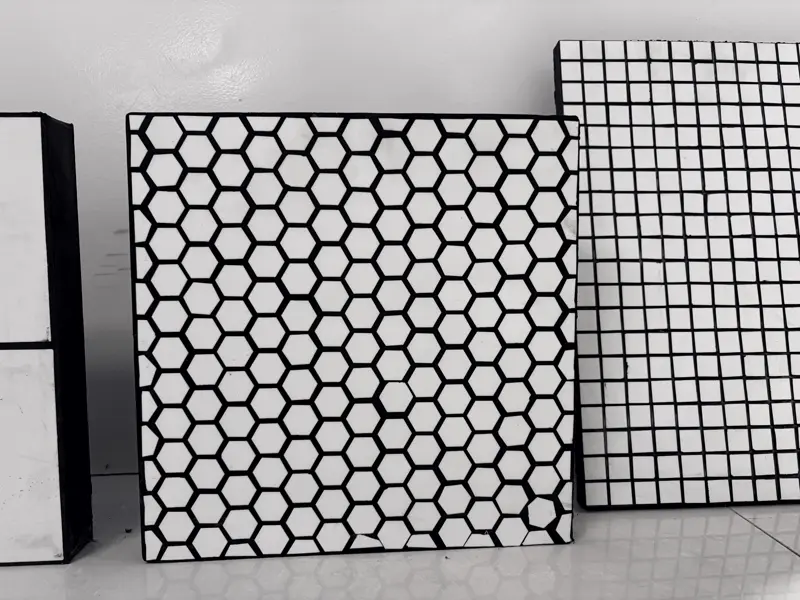

Section viewRubber-ceramic wear panels
Alumina cylinders or tiles vulcanised into rubber on a steel backing plate, for impact and abrasion together.
View product

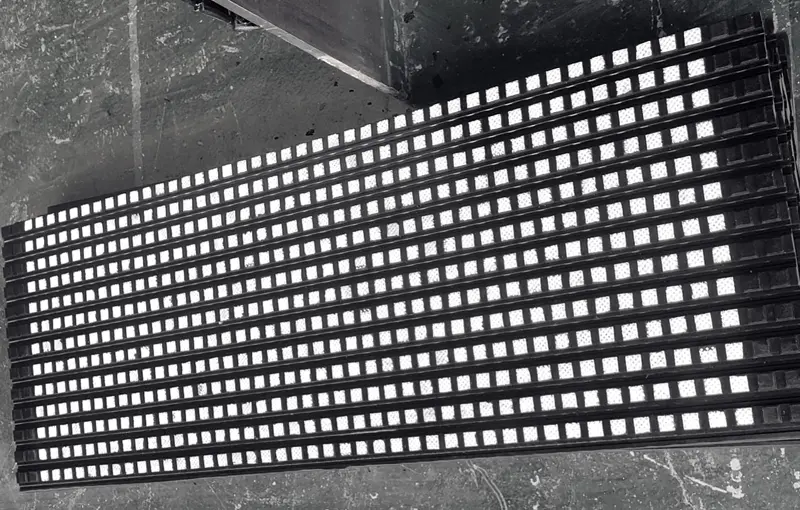

Section viewCeramic pulley lagging
Alumina tiles in a rubber layer for conveyor drive pulleys: hot-vulcanised or cold-bonded, supplied as material or sheets.
View product

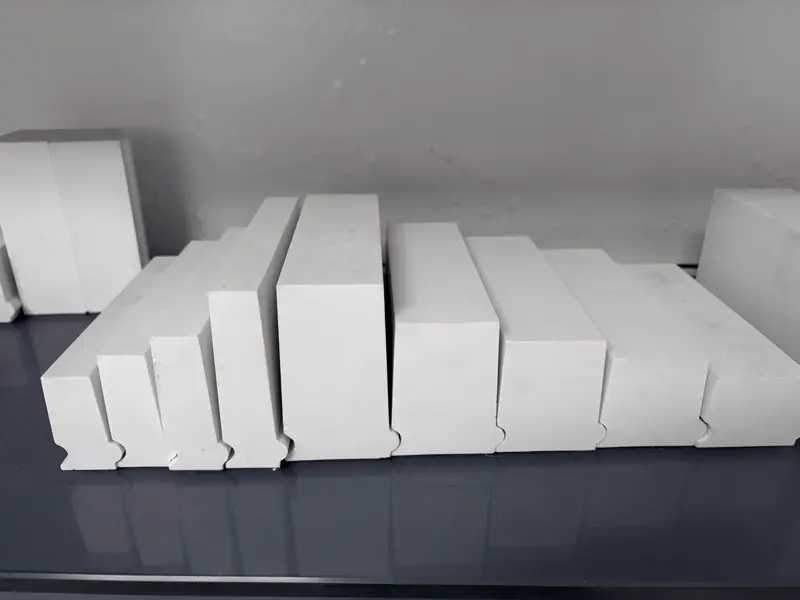

Section viewBall mill lining bricks
Standard and interlocking bricks that line ball mills, with a brick schedule for your mill size.
View product

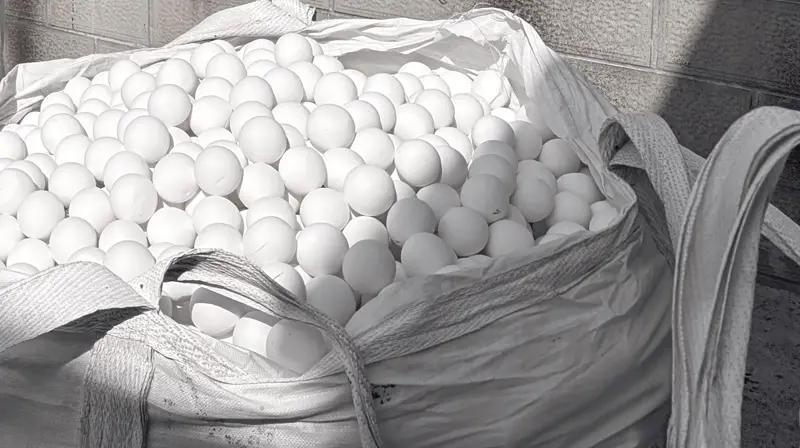

Section viewAlumina grinding balls
92 % and 95 % alumina balls for ceramic, glaze and mineral grinding; 68 % and 75 % on request.
View product

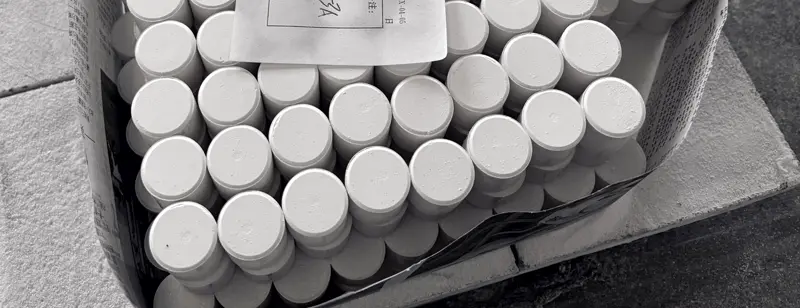

Section viewCeramic components for lining makers
Cylinders, dimpled and hexagonal tiles and mosaic mats for companies that make their own rubber-ceramic panels.
View productFrom mill linings to slurry lines — the same alumina, chosen for each duty.
Tunnel kiln line · Zibo ceramics cluster
Where the linings go.
Slurry & tailings pipelines
Bends, tees and the spools after the pump wear first. Lined steel or rubber-ceramic, chosen by particle size and pressure.
Read moreAsh & pneumatic conveying
Fly ash, bottom ash, raw meal and coal fines in power and cement plants. Temperature decides how tiles are fixed.
Read moreChutes, hoppers & silos
Sliding wear takes tiles, impact zones take rubber-ceramic, vertical and overhead faces take weld-on tiles.
Read moreBall mills
Alumina lining bricks and grinding balls for ceramic, glaze and mineral grinding, specified together when you reline.
Read moreBuying from Zibo? Have someone on your side of the table.
Zibo’s factories make good alumina ceramics. But a factory recommends what is on its own line, inspects its own goods and puts small or mixed orders at the back of the queue. We work on the buyer’s side. Our team came up inside Zibo’s ceramics industry and knows its factories, kilns and moulds. The cluster provides the manufacturing depth; we provide the buyer’s standard.
| Direct from a factory | Through Vuulcan | |
|---|---|---|
| Who recommends the design | The factory’s sales team, from its own range | Selection across alumina grades, rubber-ceramic and other materials, and across factories — and a plain “no” where alumina doesn’t fit |
| Acceptance standard | The factory’s default | Terms written for your duty and put into the contract |
| Inspection | The factory inspects its own goods | Checked on your side before packing, with photos of the goods and the loading |
| What you can’t see from abroad | Low-grade rubber, under-fired batches, loose tolerances | A team that knows where corners get cut and what to check |
| Technical questions | Passed between sales and production; answers can be slow | Engineering answers in English within one business day |
| Small, trial and mixed orders | Often low priority | Each item routed to the factory that suits it; one quotation, one shipment |
| When something goes wrong | Negotiated from abroad | Taken up in Zibo, against the acceptance terms in your order |
When buying direct makes more sense
If you buy one standard item in full containers, already know the specification and have your own inspector in China, buy direct from a good factory. You don’t need us — and we will tell you so.
Some promises we don't make.
Wear life depends on your material, velocity and impact. We share what we know from similar duties and say when we don't know.
Our products are made by partner factories in Zibo. We tell you the grade and process you are buying, not that we built the kiln.
Pressure, thermal and structural design stay with the factory engineer or your designer. We coordinate it; we don't certify it.
Rapid temperature swings, very hot gas ducts and heavy lumps on bare tiles are poor fits. We'll say so and suggest what to look at instead.
A first answer in one table.
The full reasoning, with limits for each rule, is in the selection guide.
| Duty | Usually fits | Watch for |
|---|---|---|
| Sliding abrasion at ambient temperature — chutes, hoppers | Plain or weld-on tiles, 92 % | Vertical and overhead faces: use weld-on tiles |
| Abrasion plus impact from lumps | Rubber-ceramic panels | Rubber limits the temperature |
| Slurry lines — bends, tees, reducers | Ceramic-lined steel elbows and spools | Particle size and pressure surges |
| Dry ash or powder in pneumatic lines | Lined bends and pipes | Ash temperature decides the fixing |
| Wet, corrosive duties such as FGD | Weld-on tiles with suitable studs | Stud and adhesive chemistry, not the alumina |
| Ball mills — ceramic and mineral grinding | Alumina lining bricks with alumina balls | Iron contamination; mill diameter |
| Hot gas with rapid temperature swings | Usually not alumina tiles | Thermal shock — ask us |
What goes wrong with wear ceramics — and how to avoid it.
Rubber-ceramic panels: what to confirm before ordering
A purchasing checklist for rubber-ceramic panels: duty conditions, compound specifications, interfaces, samples and open requirements.
Read the note2026-10-15Write the defect allowance into the contract
Agree product-specific acceptance checks, evidence and responsibilities before ordering wear ceramics; do not copy universal defect limits.
Read the note2026-10-15Bonded or weld-on tiles? Conditions to confirm before choosing
A buyer's checklist for fixing details, documented limits, duty conditions and open requirements before ordering alumina tiles.
Read the noteAsked before the first order.
Are you a manufacturer?
No. Vuulcan Ceramics works with partner factories in Zibo, Shandong, China. For each order we select the factory, agree what will be checked, check the goods before shipment and coordinate documents and freight. Quotations state the grade and specification you are buying.
What do you need to quote a wear lining?
The material handled, maximum temperature and how fast it changes, particle or lump size, velocity or flow, whether there is impact, any corrosive media, and a drawing or photo with dimensions. If you do not have all of it, send what you have and we will ask for the rest.
Should I choose 92 % or 95 % alumina?
92 % is the standard grade for most wear linings and grinding media. 95 % wears more slowly and costs more; it is worth considering where wear is severe or, in grinding, where purity limits are strict. We recommend a grade per duty and explain why.
Can you match an existing lining or drawing?
Yes. Send the drawing, or photos of the current lining with dimensions, and describe the duty. Non-standard shapes may need a new mould or cutting; we confirm lead time before you order.
Which shipping terms do you work on?
Usually FOB Qingdao; CFR or CIF on request. Payment terms, lead time and validity are stated on each quotation.
Tell us how the equipment runs.
Send the duty conditions and a drawing or photo. We reply within one business day, confirm what is missing, then recommend a design and price it.
